The TMA Design Tool

Part

TMADesignProposeLocal > TMADesignProposeLocal > System Analysis > Structure > The TMA Design Tool : The TMA Design Tool

Type : The TMA Design Tool

No description.

The TMA Design Tool

SystemComponent

TMADesignProposeLocal > TMADesignProposeLocal > System Analysis > Structure > The TMA Design Tool

No description.

Features

• Is Actor : false
• Is Human : false
• Is Abstract : false

Allocated Functions

• Record identities of authorized users
• Verify credentials
• Capture TMA Restriction Event
• Capture Scenarios
• Record Scenario Approvals
• Create or Edit TMA Design
• Capture Design-Scenario Combination
• Evaluate Design-Scenario Combination
• Support Dashboard Presentation of Design-Scenario Scorecards
• Export TMADesign-Scenario in Publishable format
• Capture holding stack descriptions
• Ingest waypoint data
• Ingest runway data
• Record TMA Restriction Event
• Record Relevant Locations
• Ingest No-Fly Zone Descriptions
• Record Scenario Against TMA Event
• Ingest Flight Schedules
• Add No-Fly Zone to Scenario
• Attach flight schedule to scenario
• Attach runway configurations to scenario
• Estimate flight arrival time at TMA entry point
• Estimate target time at TMA Exit point
• Map flight departures to TMA Exit points
• Map flight arrivals to TMA Entry points
• Capture link from waypoint to holding stack description
• Record runways and rotation
• Record TMA Entry and Exit Waypoints
• Capture approach and departure routes
• Capture flight level range by route and waypoint
• Provide Interactive 2D Route and Holding Area Editor (Top View)
• Provide Interactive 2D Flight Level Editor (Side VIew)
• Provide Interactive 3D Route and Flight Level View
• Suggest Flight Levels Based on Distance from Runway
• Identify Structural Safety Issues with Design
• Capture Structural Safety Issue Exceptions
• Capture Approved Design Safety Score or Grade
• Conduct Low FIdelity Design Scenario Simulation
• Schedule runways
• Select best trajectory flight path to absorb airborne delay
• Optimize TTO's across trajectories to satisfy horizontal separations
• Reject flights with infeasible TTO's
• Accept flights with feasible TTO's
• Measure flight delays
• Capture Flight Delay Score
• Capture Capacity Metric
• Measure trajectory-based fuel consumption
• Capture Fuel Efficiency Score
• Assemble Design Scenario Scores

State Machines

• System State Machine

Realizing Elements

• Logical System

Owned diagrams

Diagrams displaying "The TMA Design Tool"

• [SAB] S12 Activities: Advanced Design Capability
• [SAB] S15 Activities to Evaluate Design-Scenario Combination
• [SAB] S9 Activities: Construct TMA Design
• [SAB] S16 Activities to Provide Simulation Services
• [SAB] S7 Activities: Propose Scenarios
• [SAB] S5 Activities: Capture TMA Restriction Event
• [SAB] S3 Process: Secure Access to TMA Design Tool

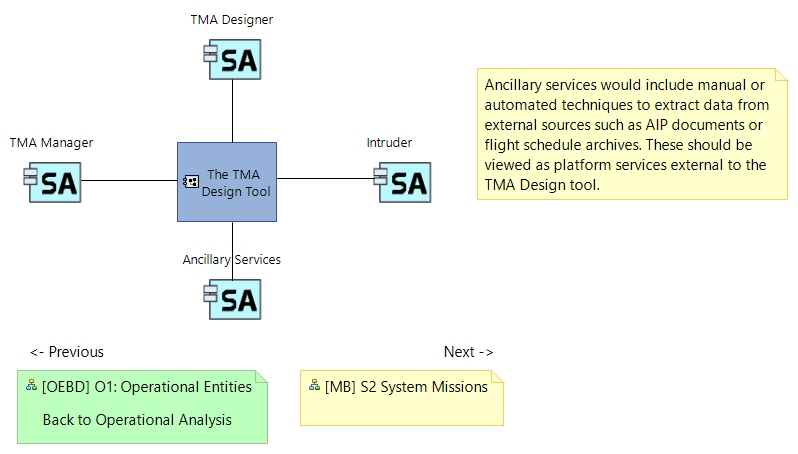

• [CSA] S1 System Actors
