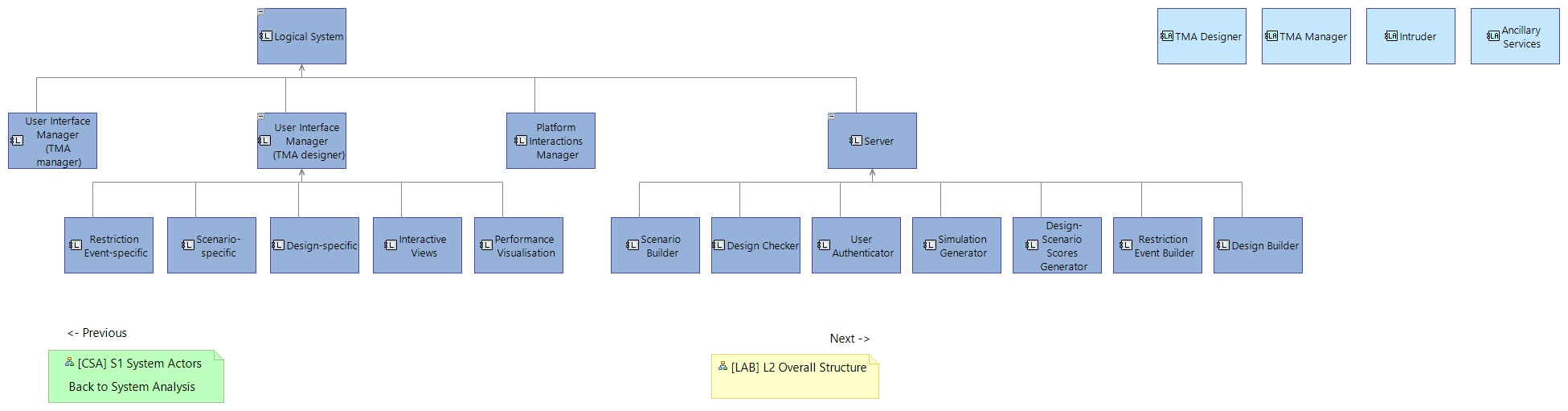

Logical System : Logical System
TMA Designer : TMA Designer- TMA Manager : TMA Manager
- Intruder : Intruder
- Ancillary Services : Ancillary Services
Logical System
TMA Designer- TMA Manager
- Intruder
- Ancillary Services
Owned diagrams

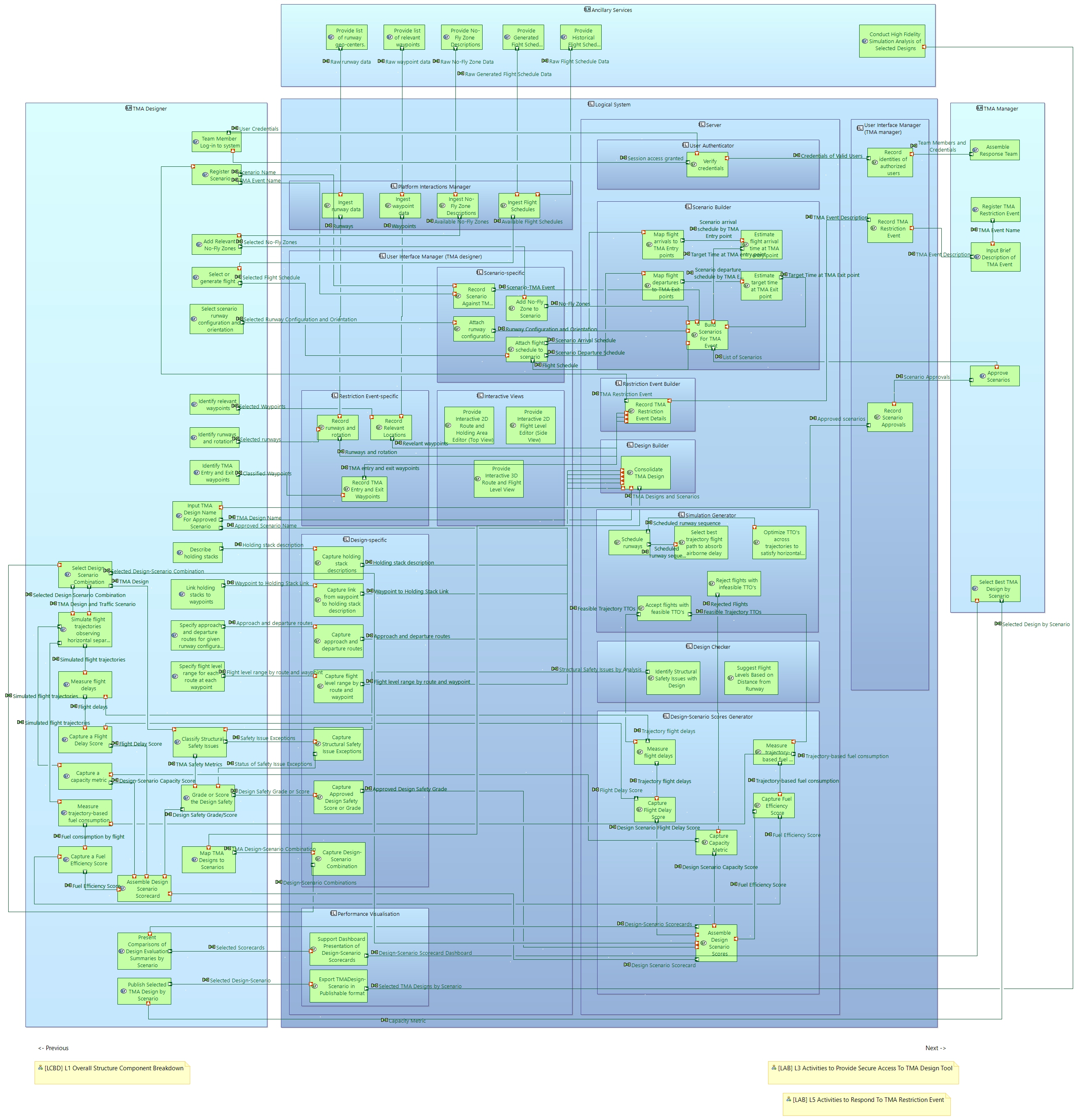

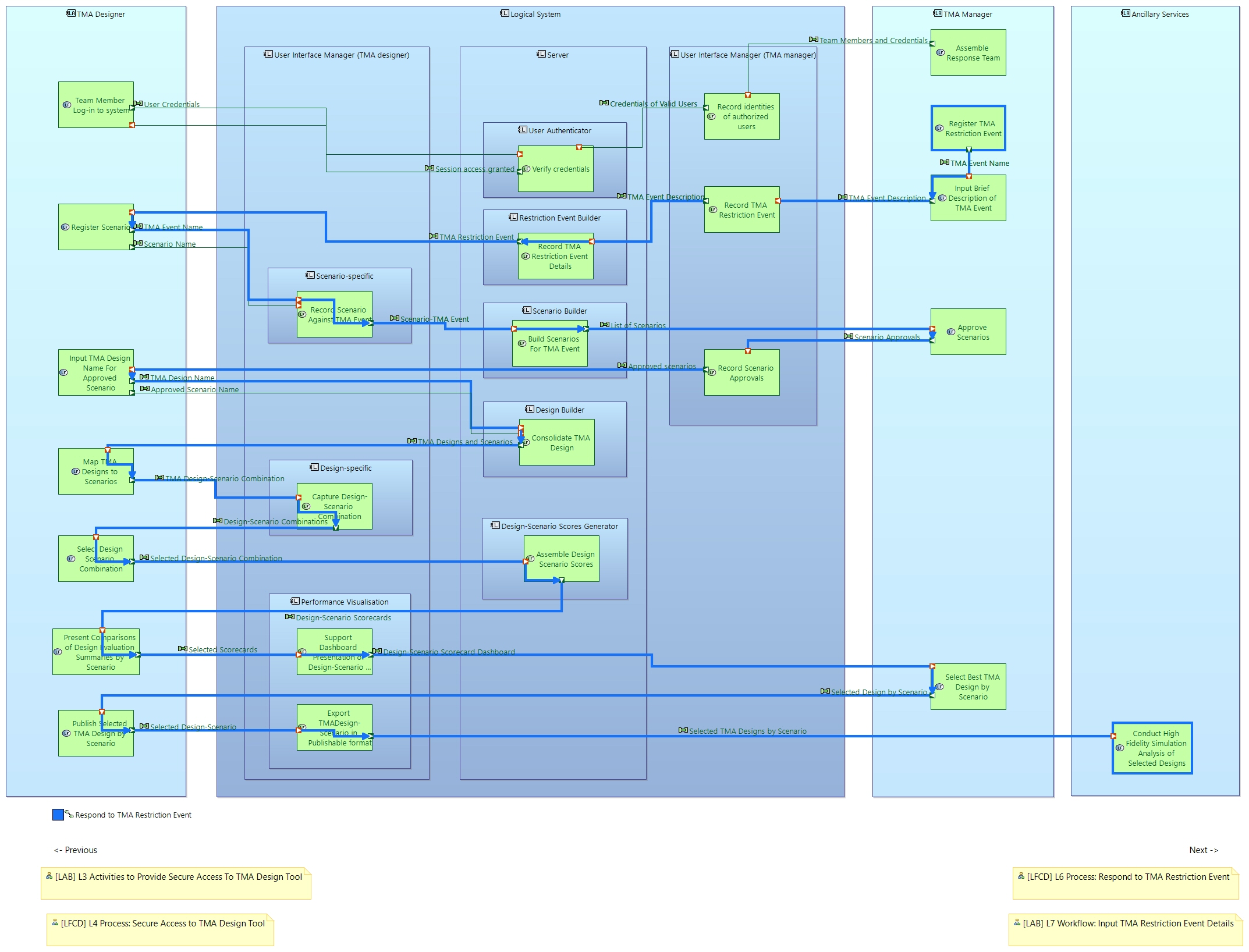

LAB L2 Overall Structure
LCBD L1 Overall Structure Component Breakdown

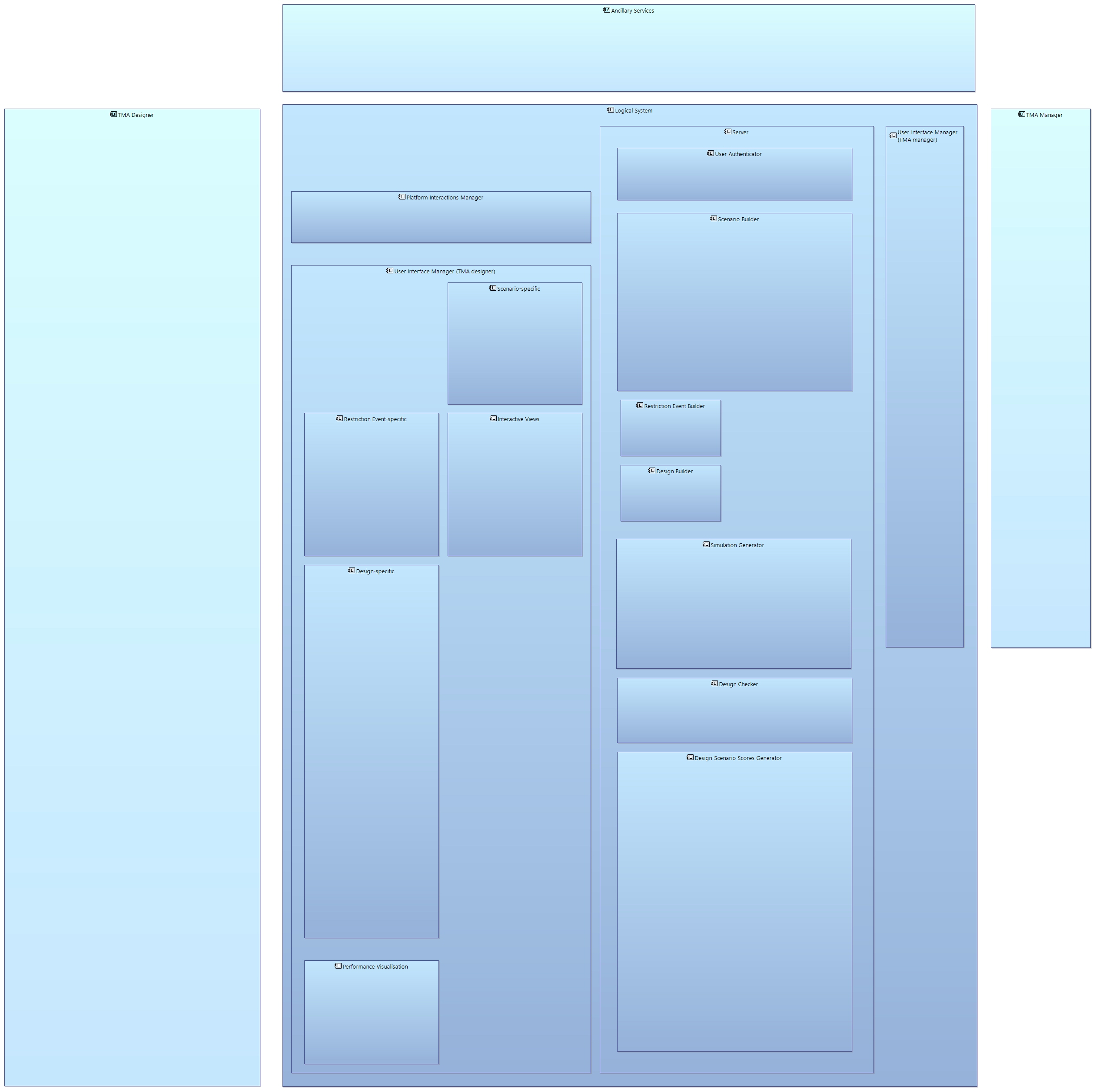

LAB L2 Overall Structure empty template

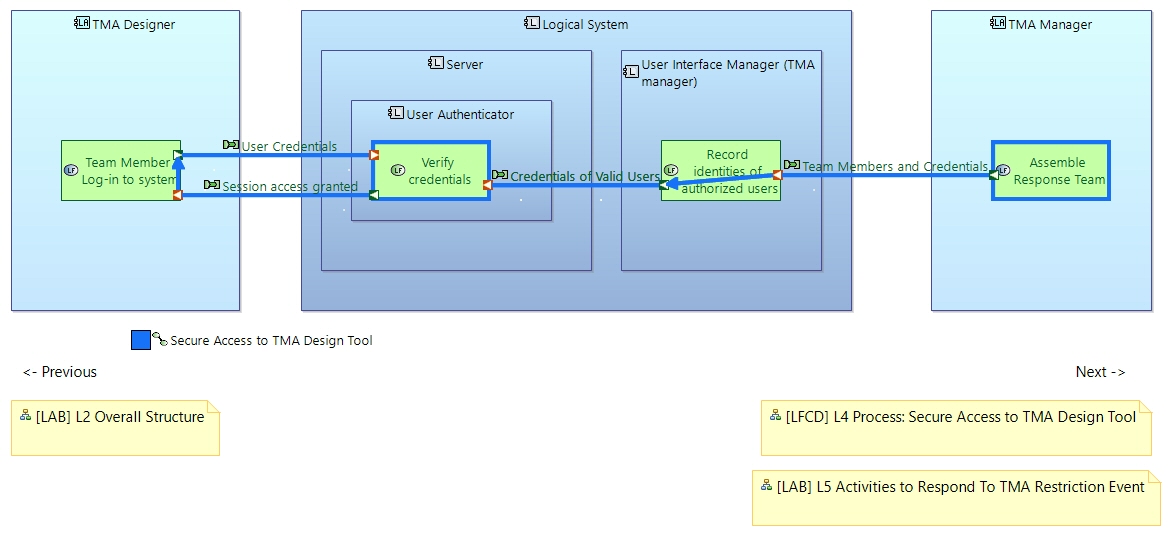

LAB L3 Activities to Provide Secure Access To TMA Design Tool
LAB L5 Activities to Respond To TMA Restriction Event

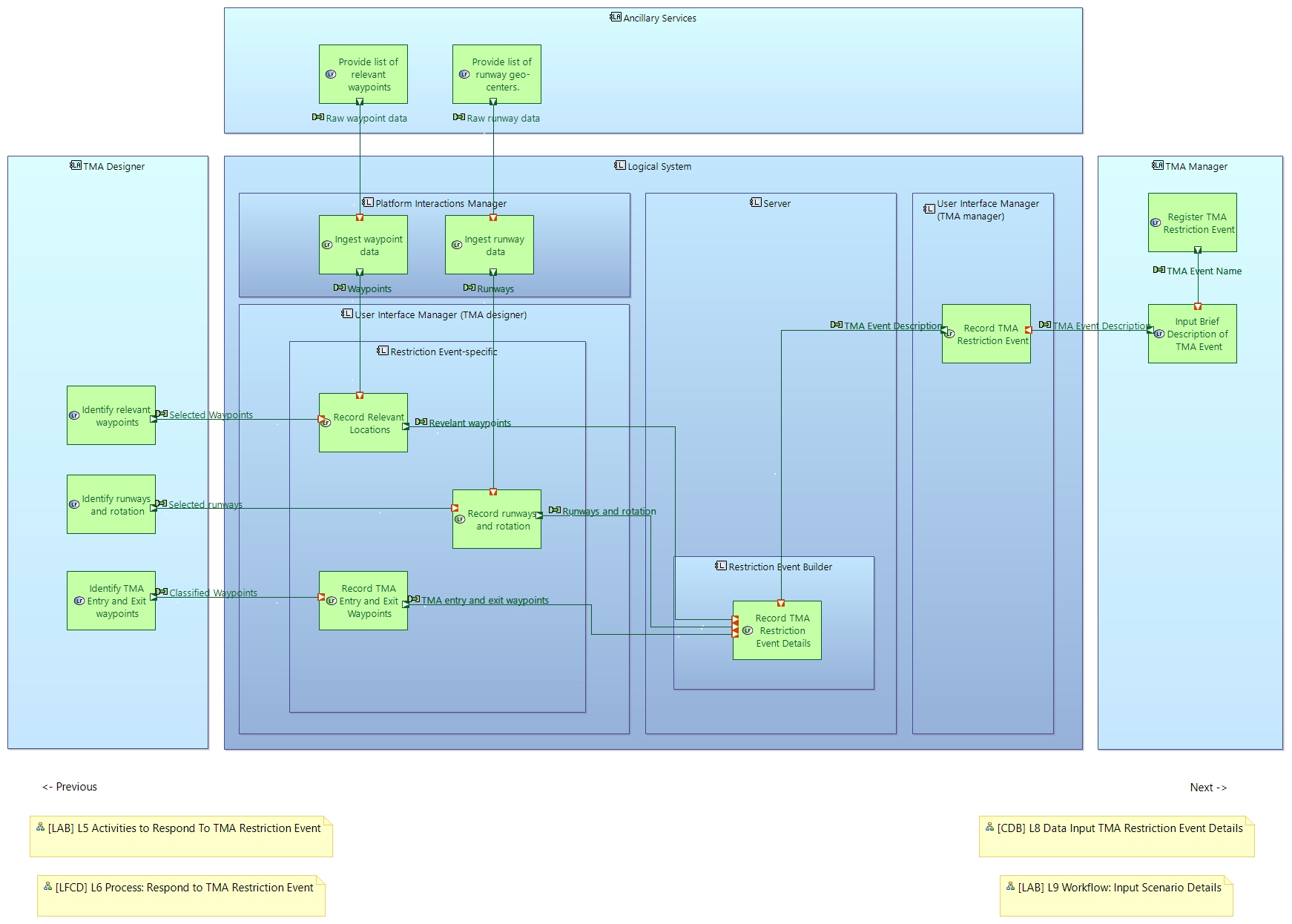

LAB L7 Workflow Input TMA Restriction Event Details
LAB L9 Workflow Input Scenario Details

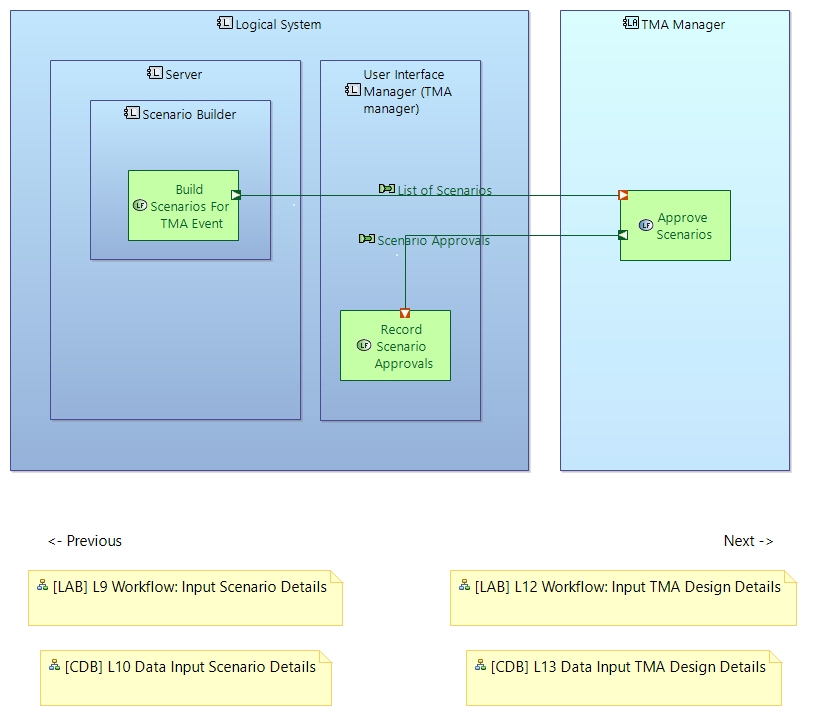

LAB L11 Workflow Approve scenarioevent

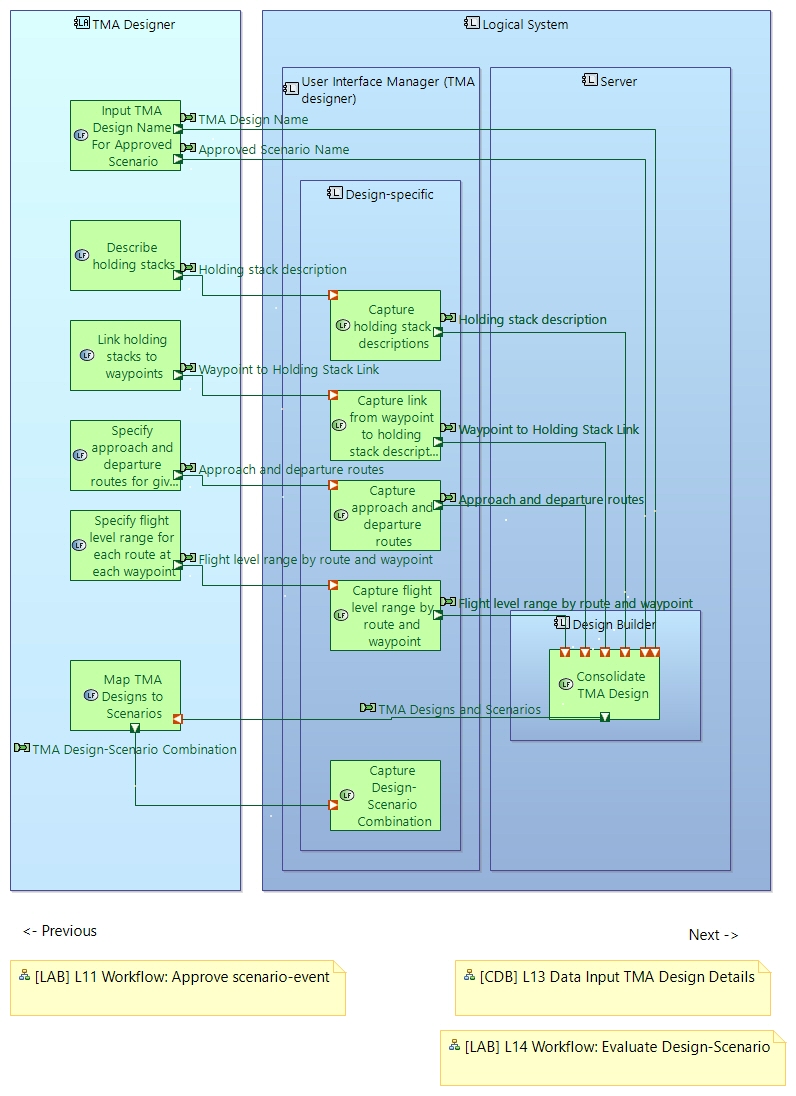

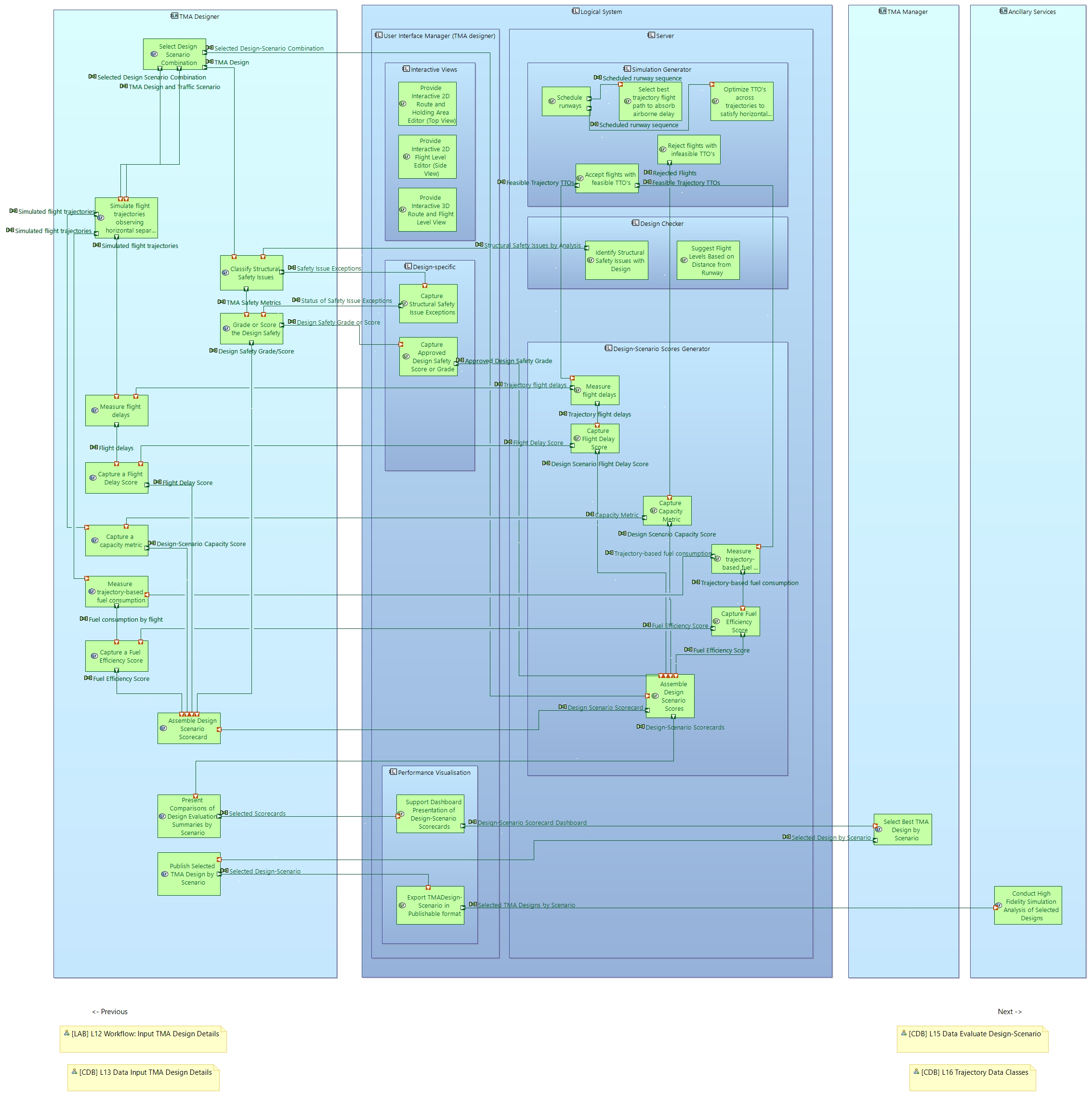

LAB L12 Workflow Input TMA Design Details

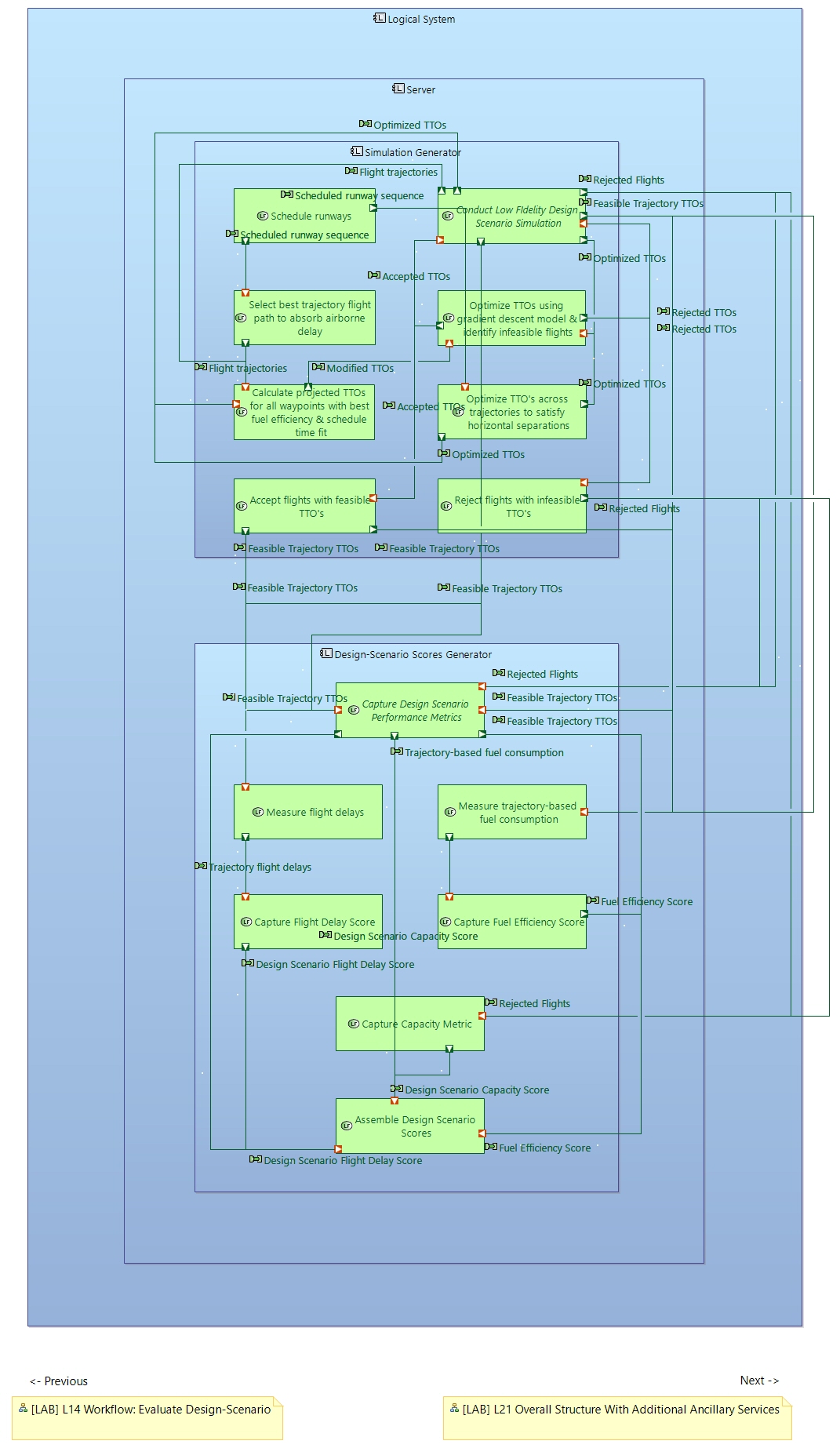

LAB L14 Workflow Evaluate DesignScenario

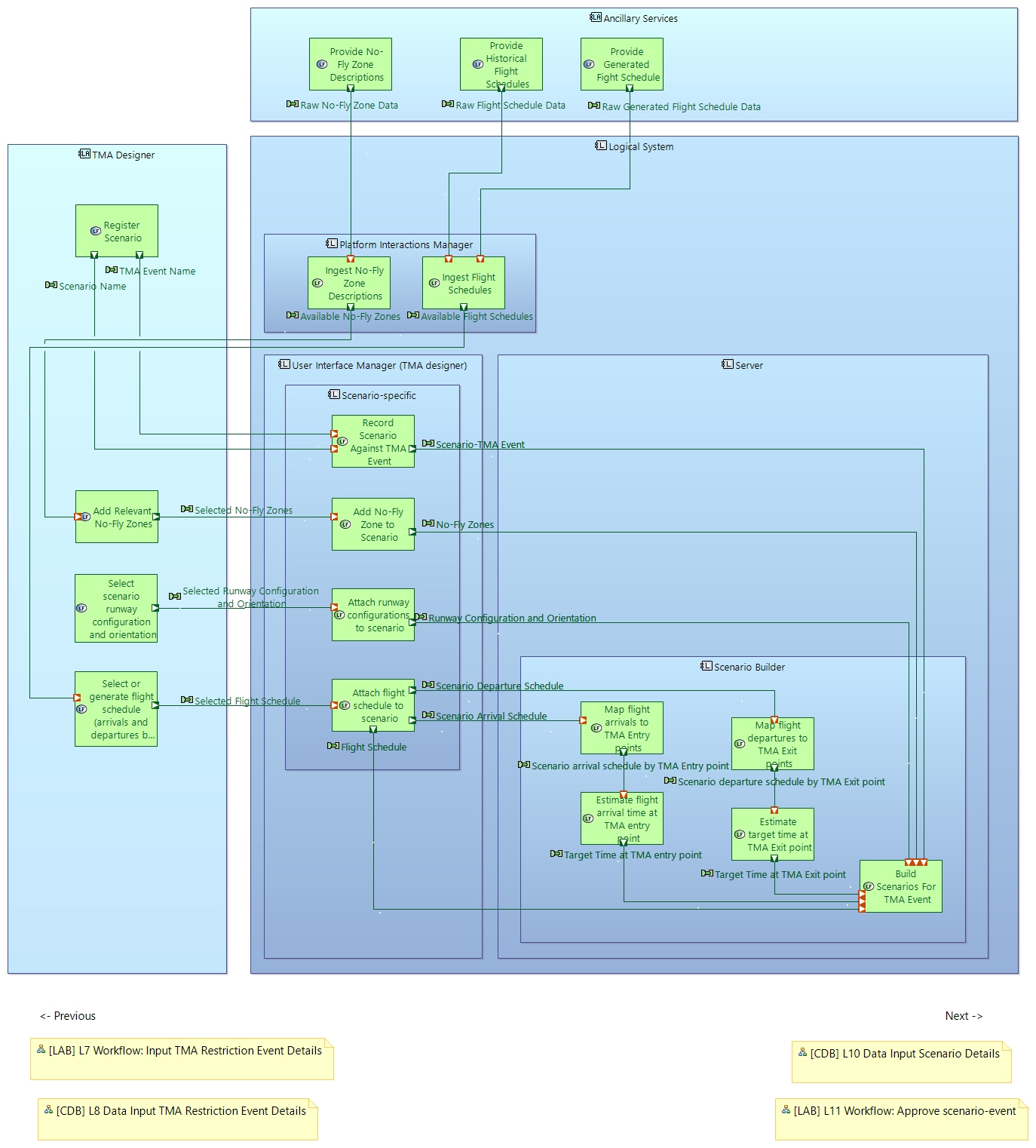

LAB L20 Workflow Generate Simulation With Ancillary Services
LAB L21 Overall Structure With Additional Ancillary Services
