System

SystemComponent

PuckWaveProject > PuckWaveProject > System Analysis > Structure > System

No description.

Features

• Is Actor : false
• Is Human : false
• Is Abstract : false

Allocated Functions

• Request location and state of each robot
• Update screen representation of each robot
• Get last known player id and desired action
• Identify target robot(s) for each player id
• Project target robot(s) location and state after time step and desired action
• Transmit robotic commands to move robot(s) to target location and state
• Receive desired action for each player id
• Save desired action by player id as last known
• Set timestep until next update
• Connect to Headset
• Request List of Profiles
• Offer List of Profiles and Player IDs
• Record Profile and Player ID Selection
• Terminate Game and Declare Winner
• Compute Score and Remaining Time
• Declare Game Start

State Machines

• System State Machine

Realizing Elements

• Logical System

Owned diagrams

Diagrams displaying "System"

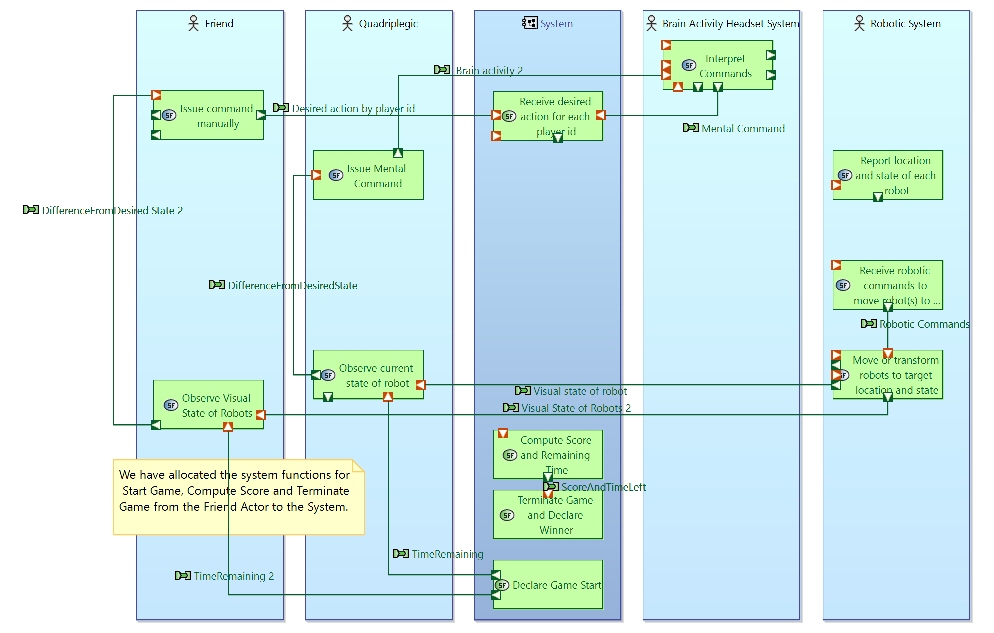

• [SAB] 06 Game Play Functional Flow

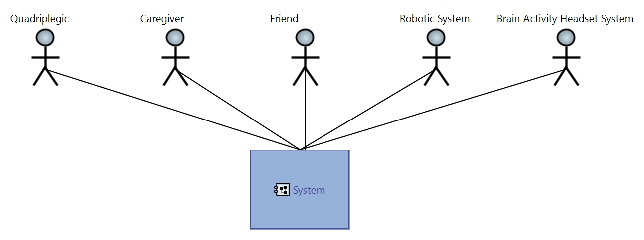

• [CSA] 01 System Context

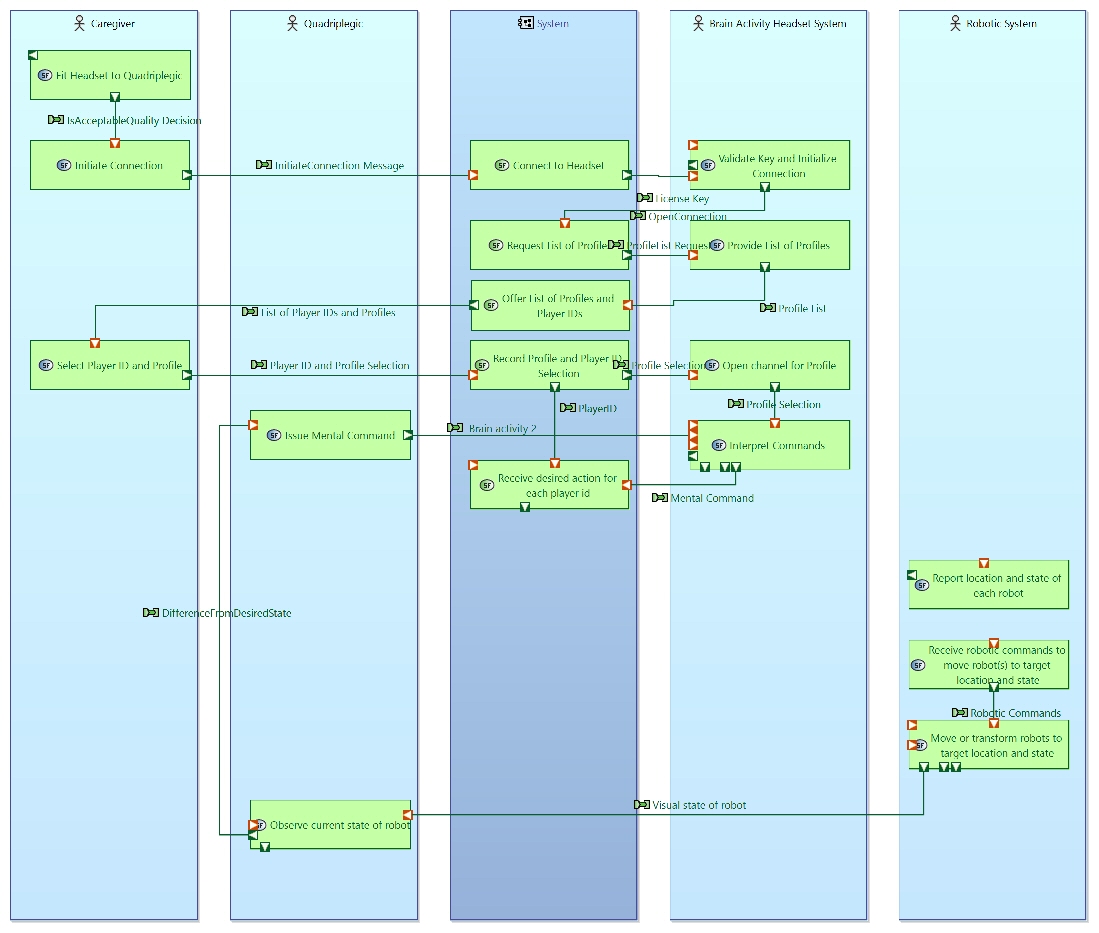

• [SAB] 05 Control Robots Mentally

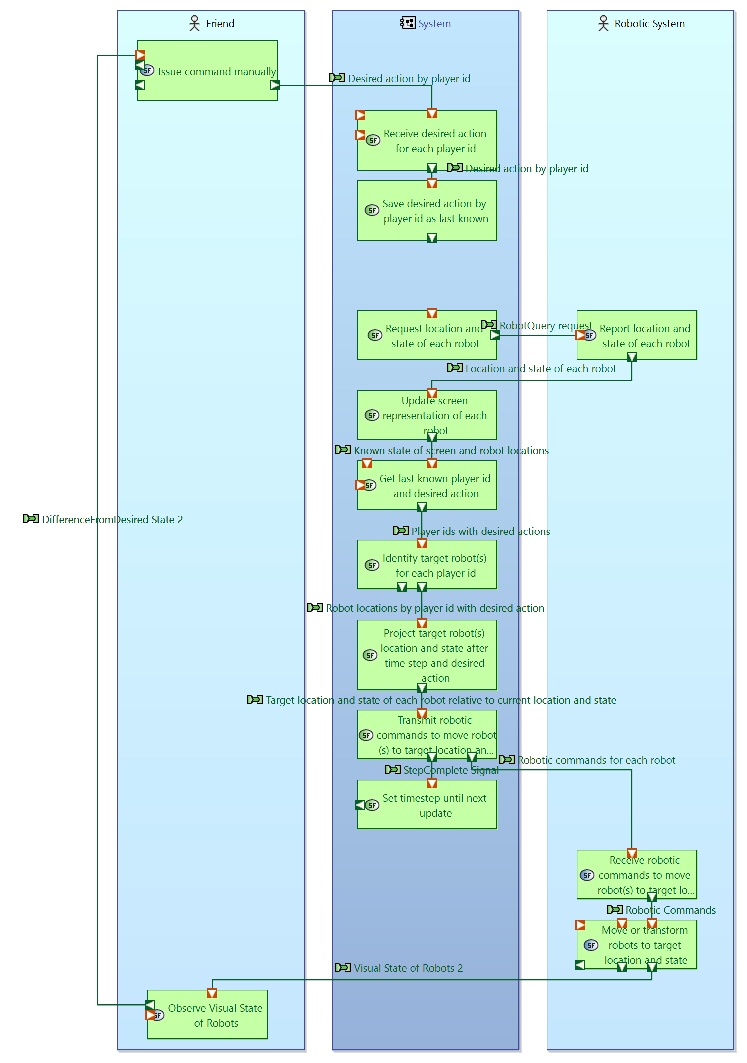

• [SAB] 04 Control Robots Manually
